VA-9595F/VA-9595N Near Field Antenna
Brand: RFID Reader.io
Model: VA-9595F/VA-9595N
The RFID Reader.io industrial RFID Antenna series delivers optimized performance for UHF applications in challenging environments.
This line includes a Circular Polarization version for far-field reading and a Near Field Antenna option for close-range identification. Both models share a compact 95×95×17 mm body, rugged IP65 protection, and a patented low-VSWR design, ensuring reliable operation in industrial, logistics, and retail scenarios.
Key Features
IP65-rated enclosure, resistant to dust and moisture
Patented appearance with low standing wave ratio
CNC aluminum alloy back cover prevents rear cross-reading
ABS+PC front panel provides excellent directionality and recognition rate
Compatible with fixed UHF readers for multi-port deployments
Supports AGV navigation, logistics sorting, assembly lines, auto parts management, and retail inventory

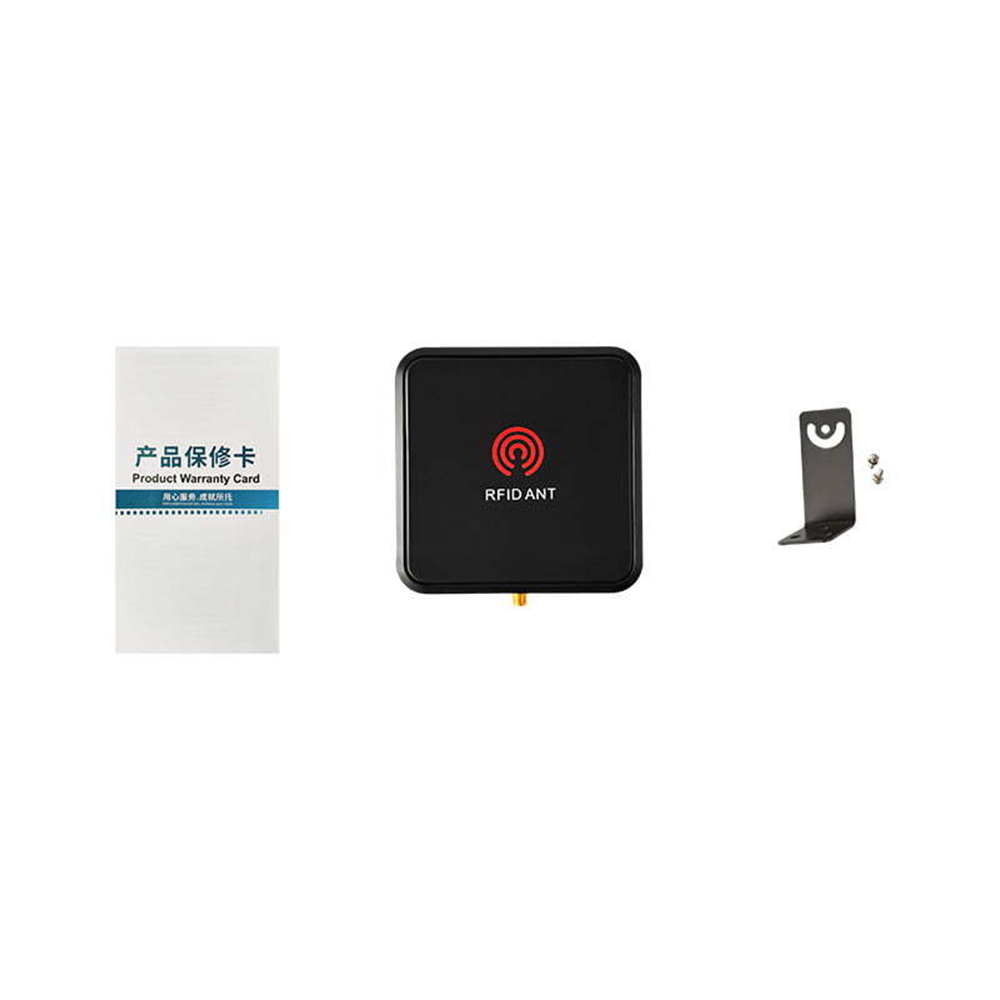

Flexible mounting bracket for fast installation
Application Scenarios
Logistics sorting lines with multiple RFID Antenna points
AGV and mobile robots for navigation and tag detection
Conveyor belts and assembly lines for electronic tag reading
Auto parts management in production facilities
Retail apparel and accessories stock control
Technical Specifications

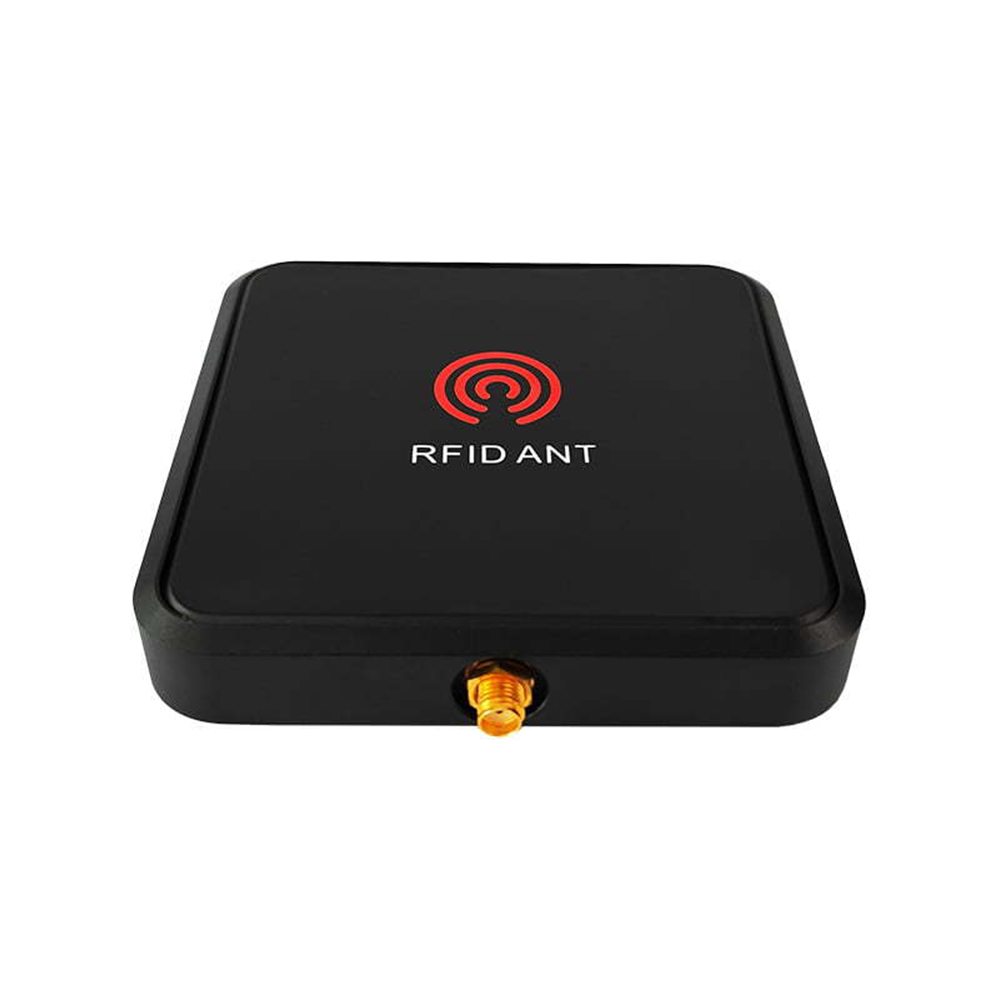

Model VA-9595F – Circular Polarization
| Item | Specification |
|---|---|
| Frequency Range | 902-928 MHz / 865-868 MHz |
| Antenna Type | Dual-polarized ceramic |
| Polarization | Circular Polarization |
| Gain | >3 dBi |
| Axial Ratio | <3 dB |
| VSWR | ≤1.3:1 |
| Impedance | 50 Ω |
| Reading Distance (with VF-747P) | 60 mm – 10 m (13–33 dBm) |
| Interface | SMA female |
| Dimensions | 95×95×17 mm |
| Operating Temperature | -40 °C ~ +85 °C |
| Material | Aluminum alloy + ABS |
| Color | Matt black |
| Weight | 0.2 kg |
| Mounting | Standard iron bracket |

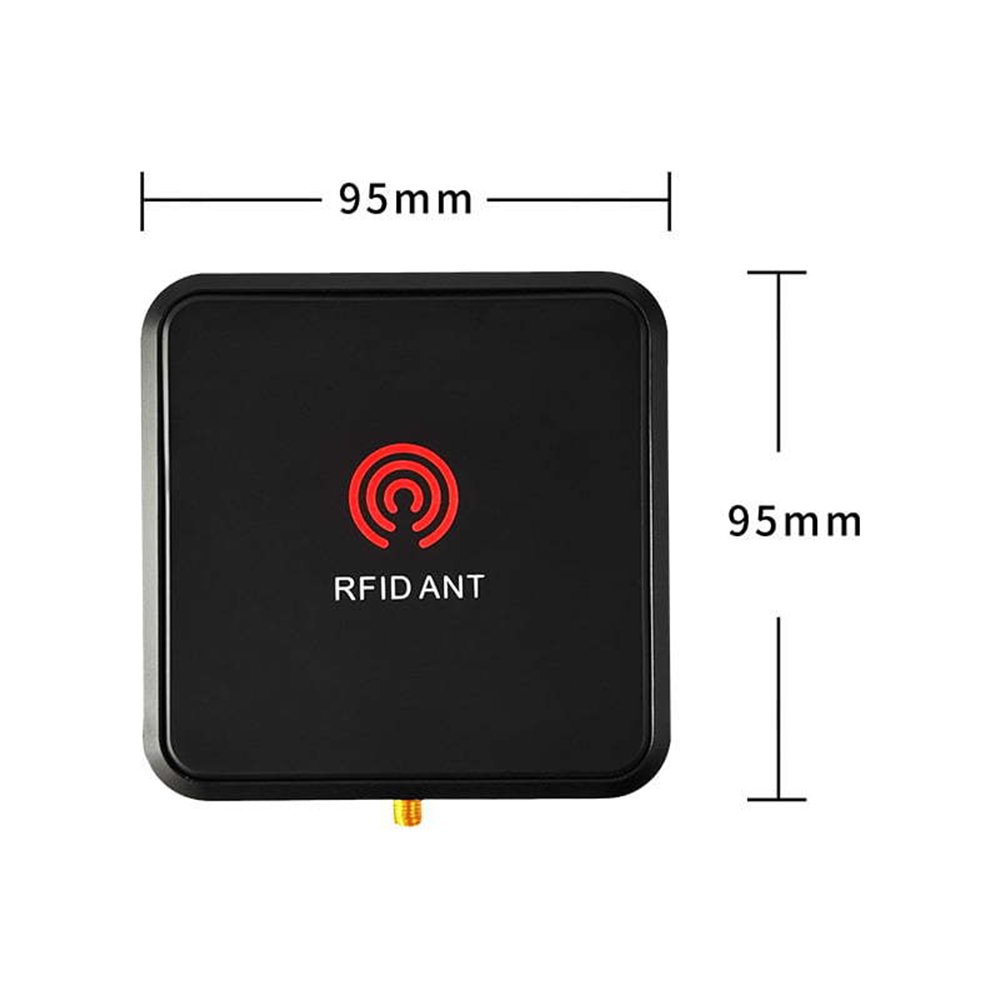

Model VA-9595N – Near Field Antenna
| Item | Specification |
| Frequency Range | 902-928 MHz / 865-868 MHz |
| Antenna Type | High-dielectric PCB |
| Polarization | Near Field Antenna |
| Gain | -15 dBi |
| Axial Ratio | <3 dB |
| VSWR | ≤1.5:1 |
| Impedance | 50 Ω |
| Reading Distance (with VF-747P) | 20 mm – 350 mm (13–33 dBm) |
| Interface | SMA female |
| Dimensions | 95×95×17 mm |
| Operating Temperature | -40 °C ~ +85 °C |
| Material | Aluminum alloy + ABS |
| Color | Matt black |
| Weight | 0.15 kg |
| Mounting | Standard iron bracket |
FAQ
Q1: What is the main difference between the two versions?
A1: One model uses Circular Polarization for far-field UHF reading, while the other is a Near Field Antenna for short-range scanning of small or densely packed tags.
Q2: Can they be installed in harsh environments?
A2: Yes, both antennas feature an IP65 enclosure and CNC aluminum housing, offering reliable protection against dust, oil, and humidity.
Q3: What readers are compatible with these antennas?
A3: They integrate easily with most fixed UHF readers, including VANCH VF-747P, ensuring precise performance across applications.
Q4: How should I choose between the far-field and near-field versions?
A4: Select the Circular Polarization model for tags at medium to long distance. Use the Near Field Antenna when tags are very close or tightly stacked.
Q5: Can I mix both models in a single system?
A5: Yes, they can work together in multi-port reader setups, giving maximum flexibility for complex RFID coverage.
